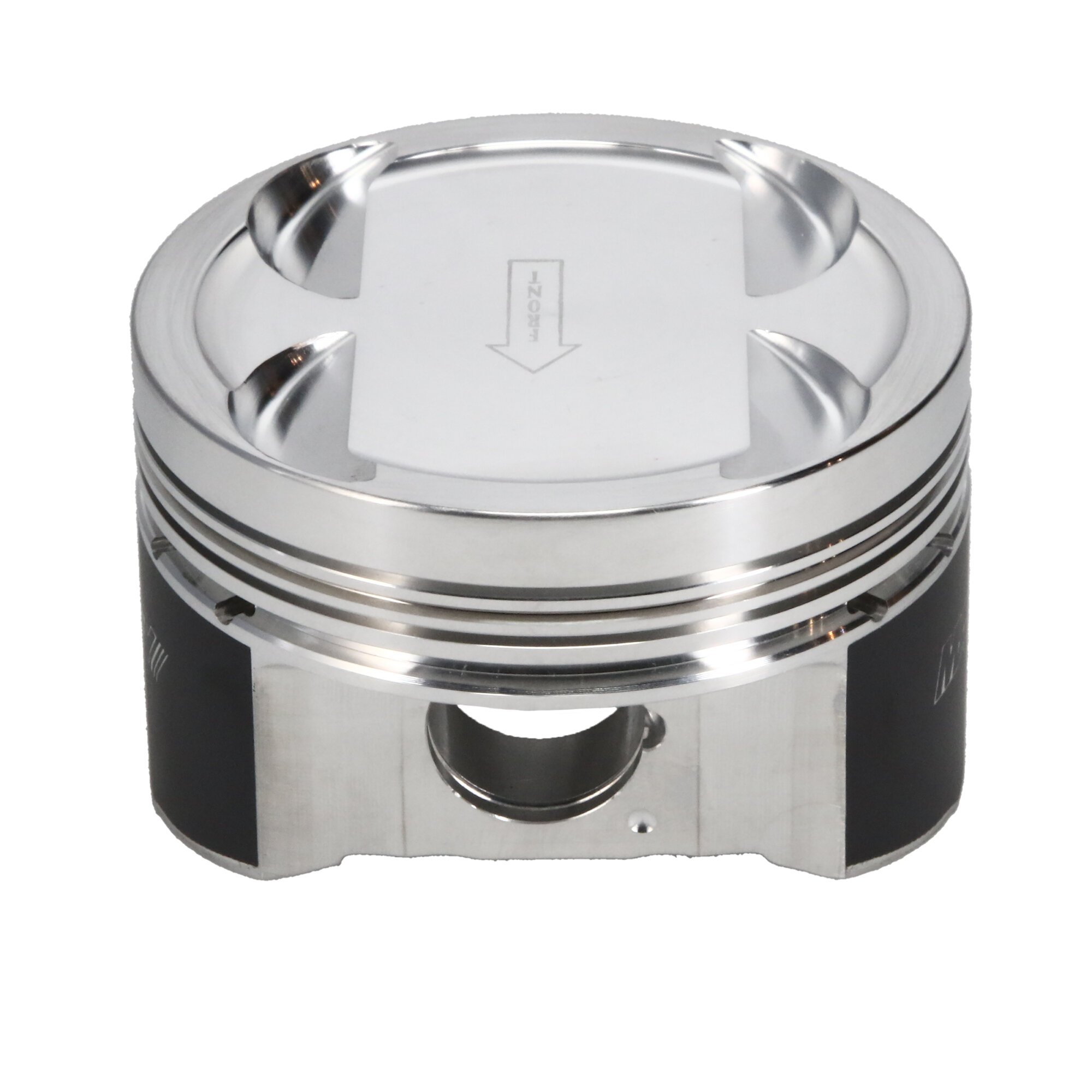

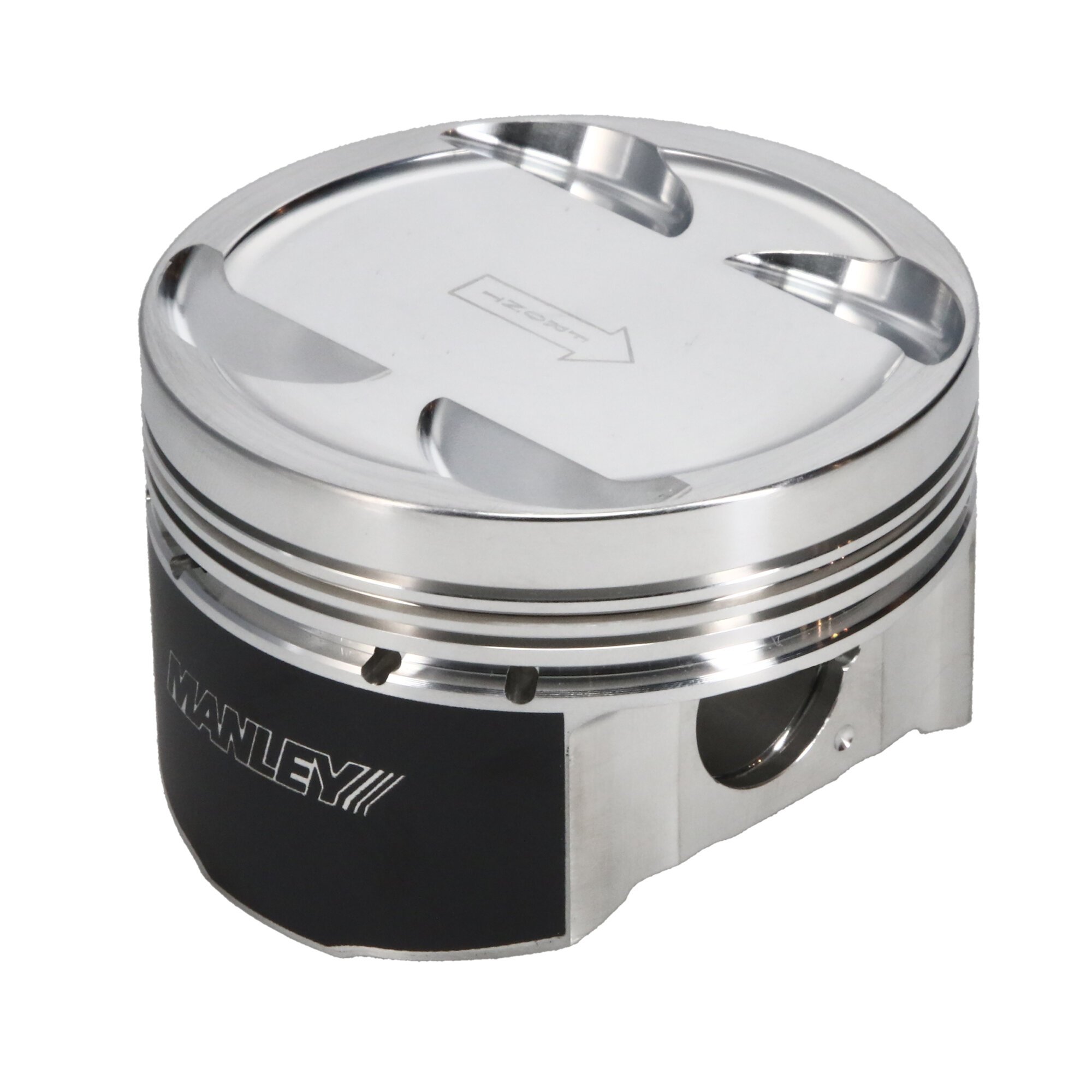

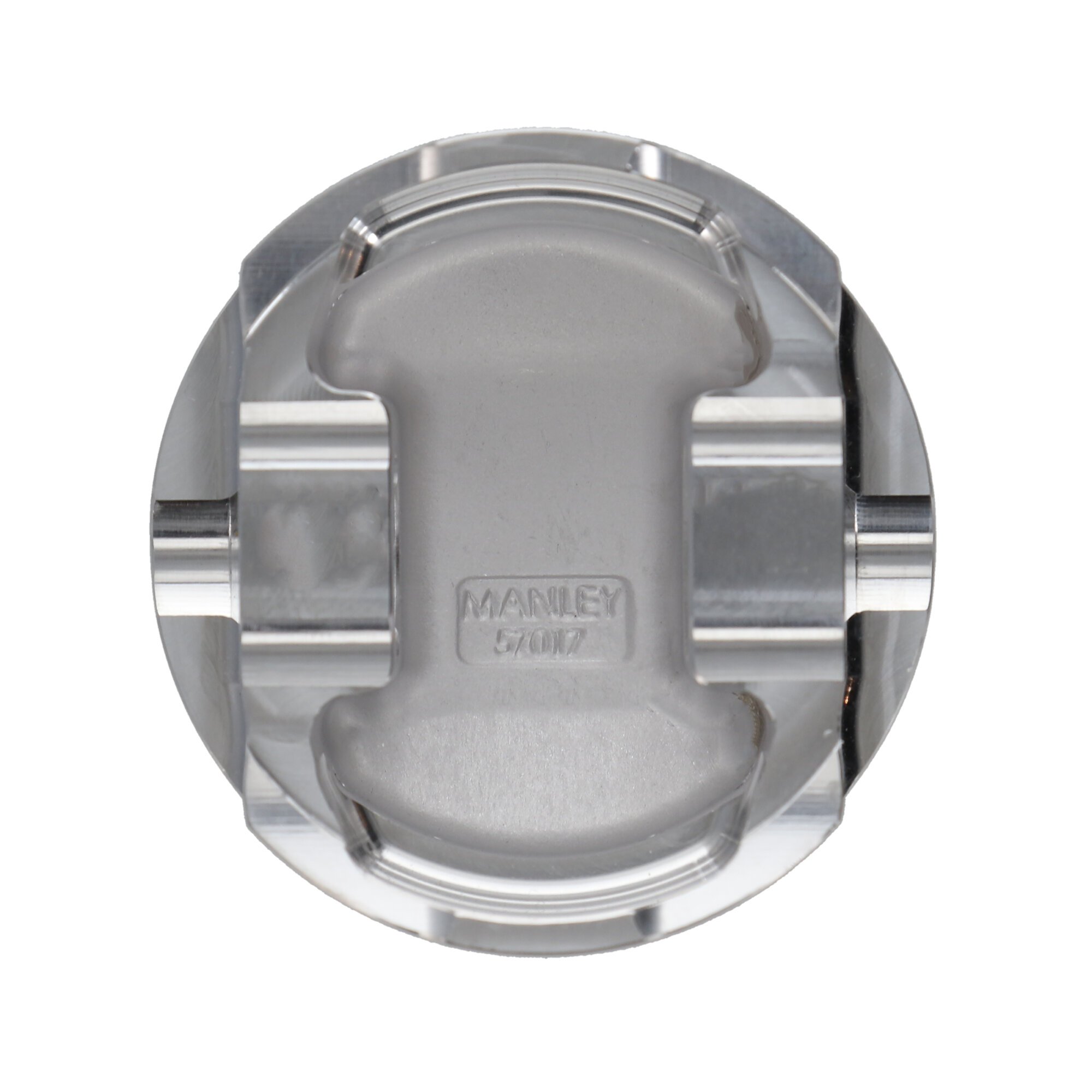

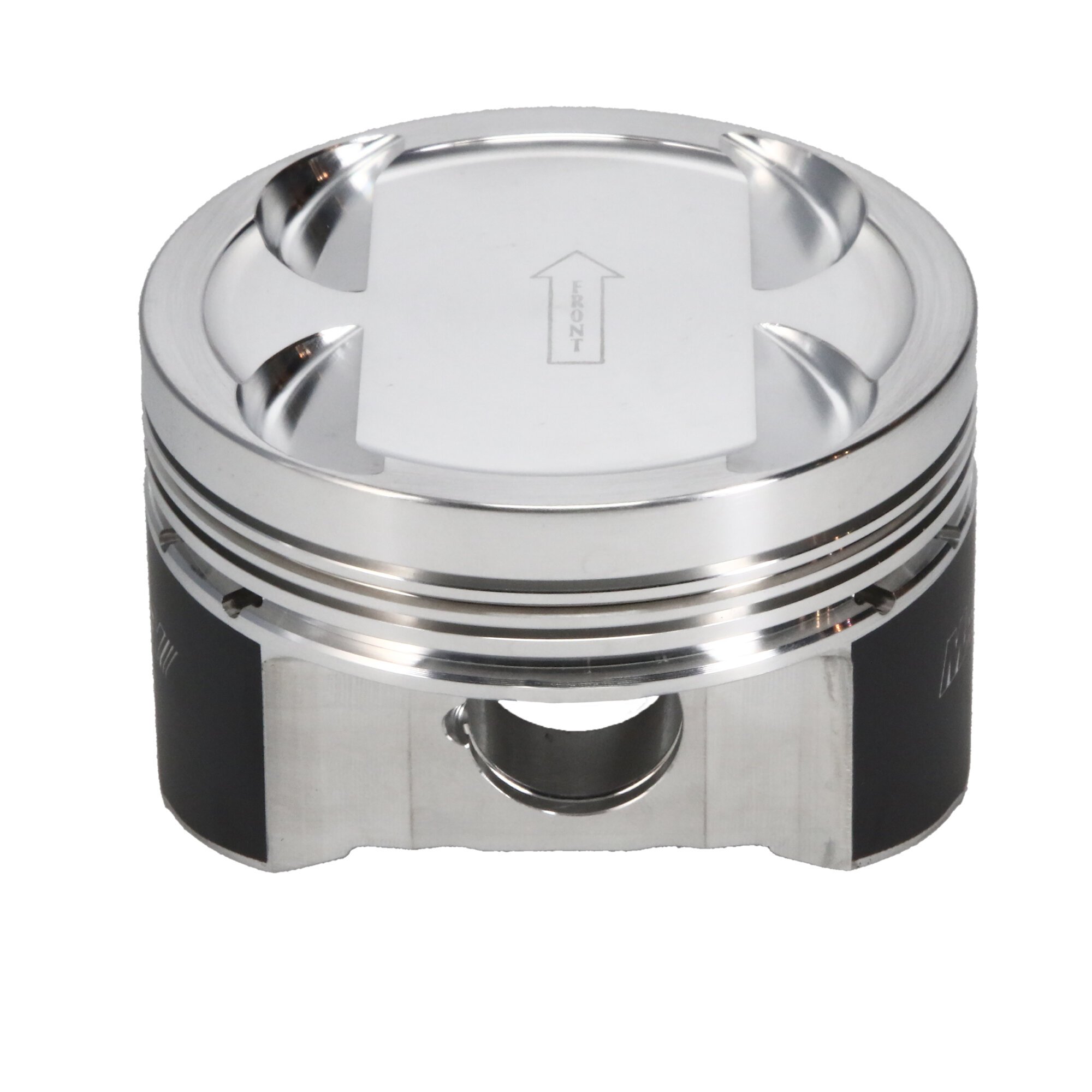

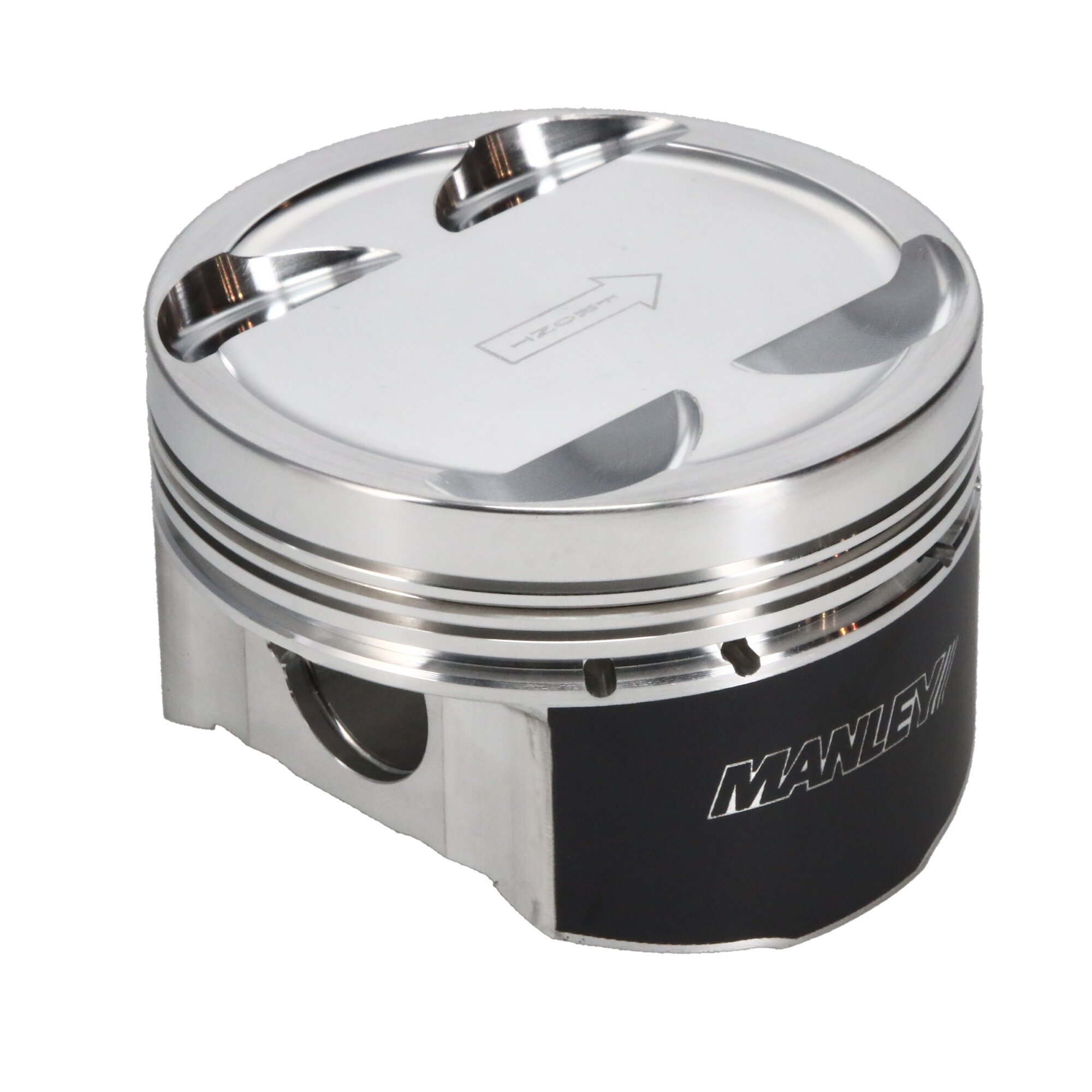

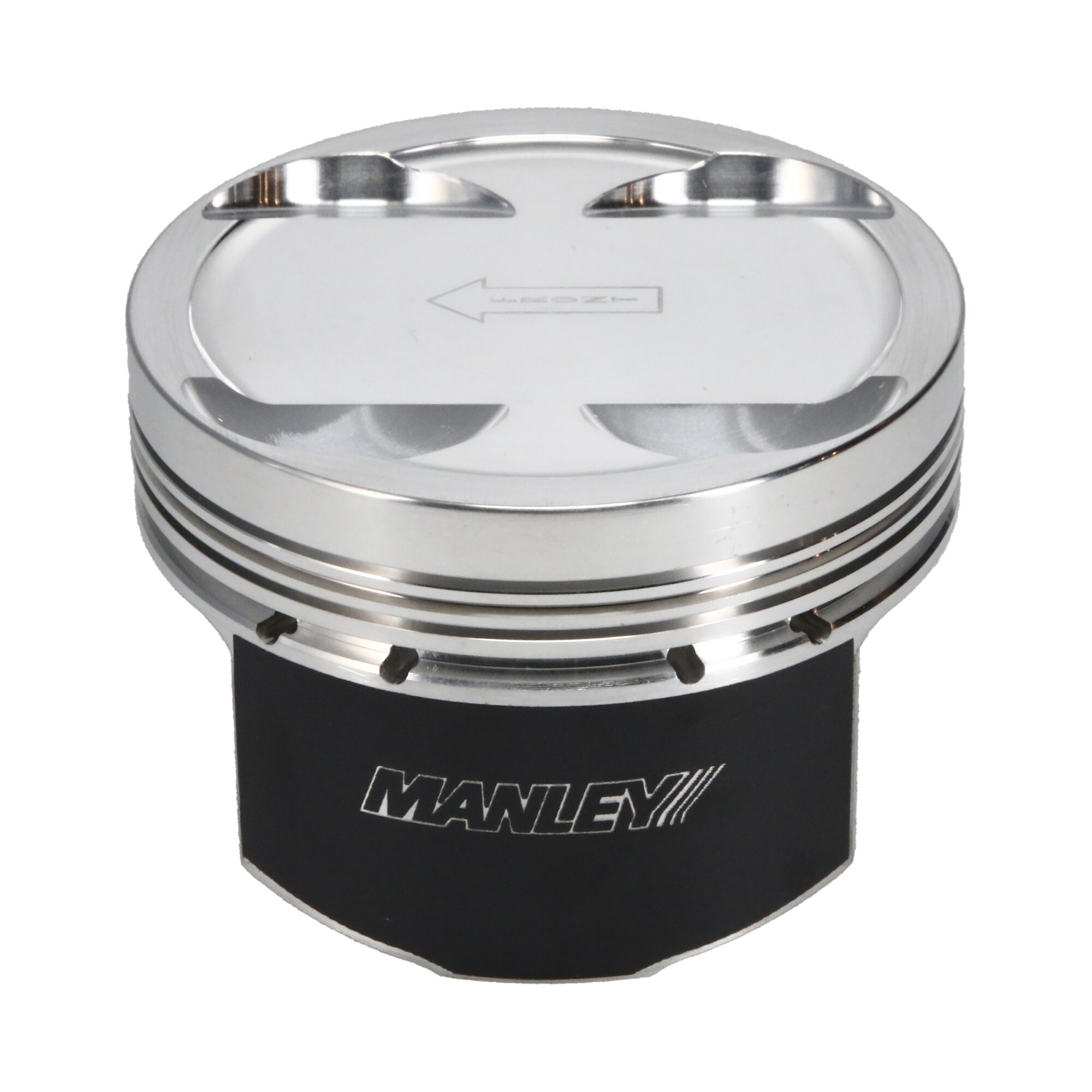

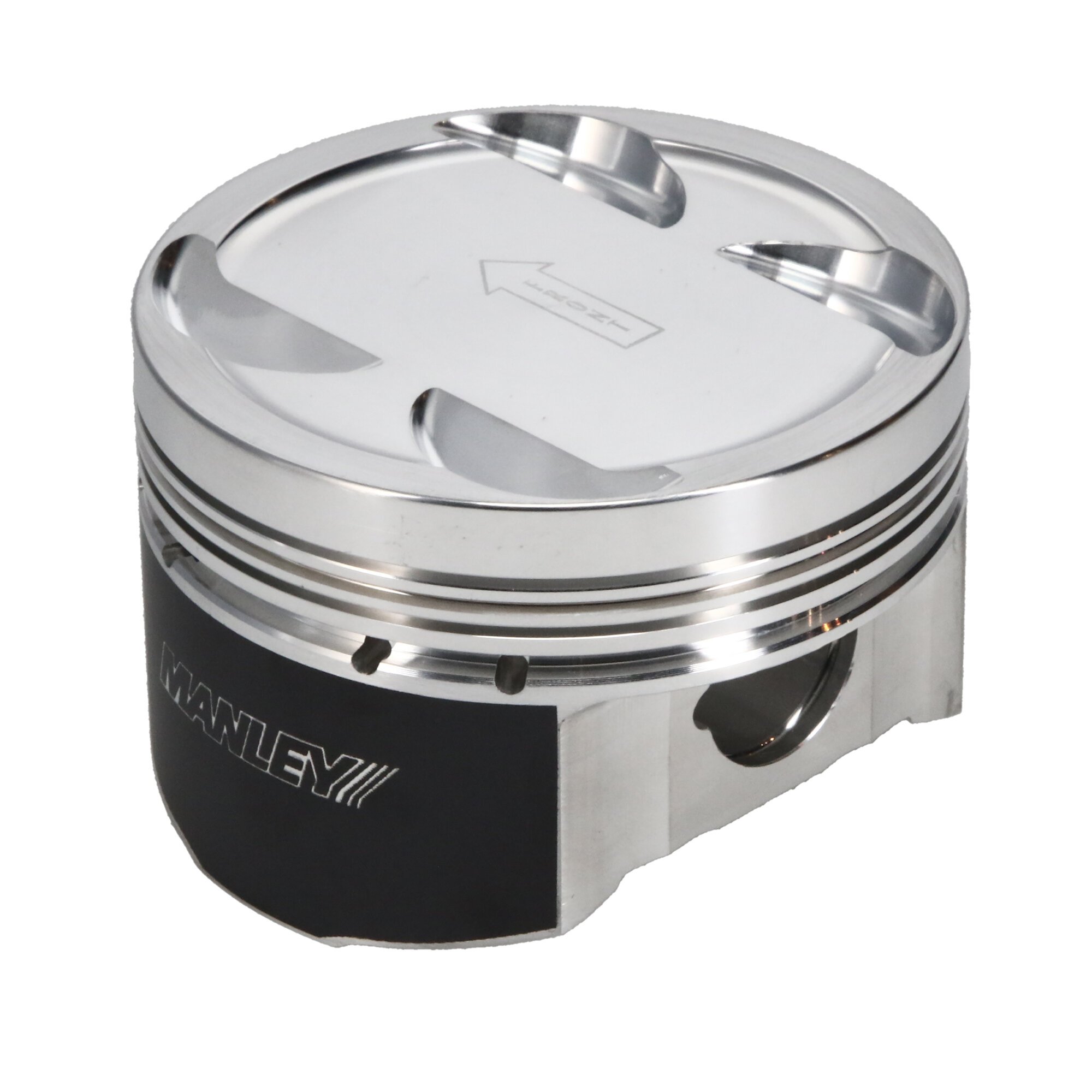

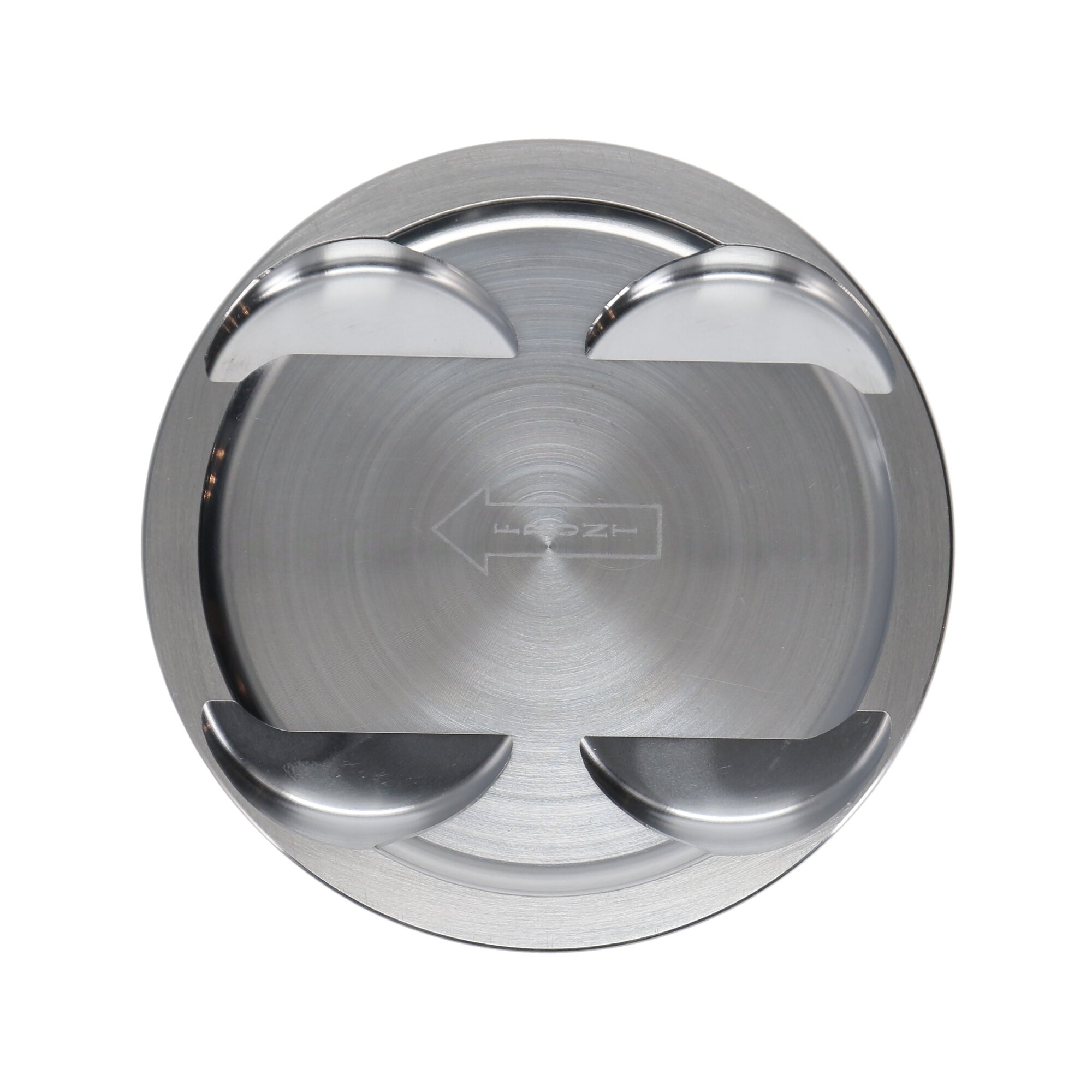

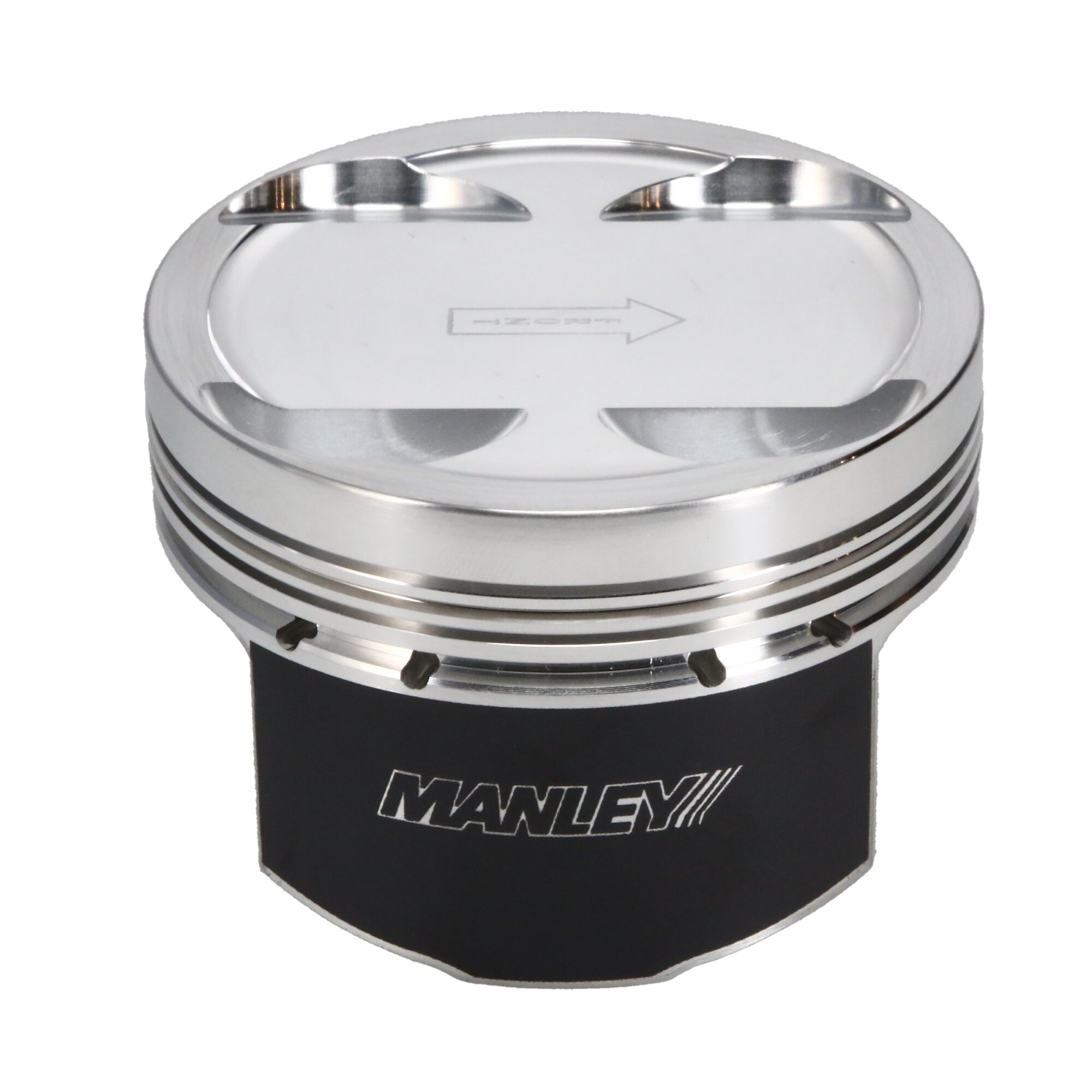

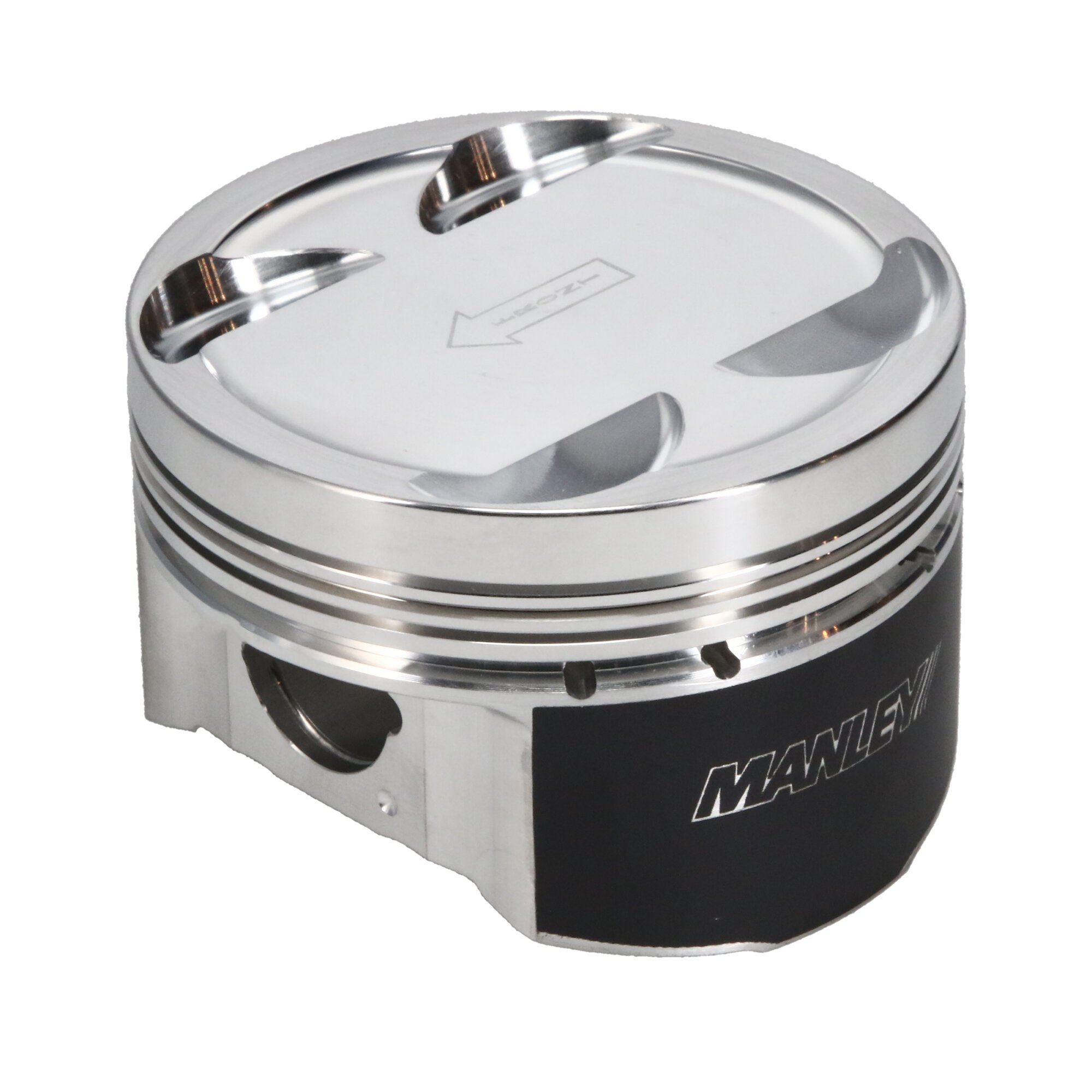

Manley Mitsubishi 2.0L 4G63 Piston Set – 86.00 mm Bore 1.375 in. CH, -12.00 CC

$713.21

SKU: 605010C-4


Add to Project List

Manley Piston Set, PIST-MITSU 86mm/1.375 CD/DISH.

Our signature “Platinum Series” pistons feature 2618 alloy forgings, proven cam and barrel skirt profiles, tool steel wrist pins, and moly skirt coatings on select part numbers. Join the ranks of professional engine builders and tuners who rely on Manley pistons for superior performance and durability.
2618 Alloy Forgings: We use domestic 2618 alloy forgings, ensuring superior strength and performance.Chrome Moly Wrist Pins: Premium Chrome Moly wrist pins come standard with our Standard Series Pistons. For select SKUs, we offer wrist pin upgrades to 9310 and Turbo Tuff/DLC alloys, providing additional durability.Exacting Ring Lands and Grooves: We adhere to strict standards for piston ring lands and grooves, resulting in enhanced ring seal and more power.Cam and Barrel Profiles: Our pistons boast cam and barrel (skirt) profiles that generate substantial power while being gentle on cylinder walls.Unique Fixturing: Manley’s unique fixturing allows for skirt turning and ring groove machining in a single operation, ensuring ultimate ring groove to skirt squareness.

SKU: 605010C-4 Categories: ,

GTIN: 00807298036779

Weight 5.000 lbs
Dimensions 9.000 × 9.000 × 7.750 in
Product Market

Sport Compact

Bore Diameter

86.00 MM

Compression Height

1.375 IN

Piston Volume

-12.00 CC

Weight

348 GR

Piston Series

Platinum Series

Product Type

Engine Piston Kit

Piston Quantity

4

Engine Stroke

88.00 MM

Bore Oversize

+1.00 MM

Piston Head Type

Dish

Compression Ratio

8.50:1 CC

Piston Sub-Series

Standard

Engine Detail – Web

2.0L 4G63, 2.0L 4G63T

Makes

Mitsubishi

Engines

4G63 / 4G64
