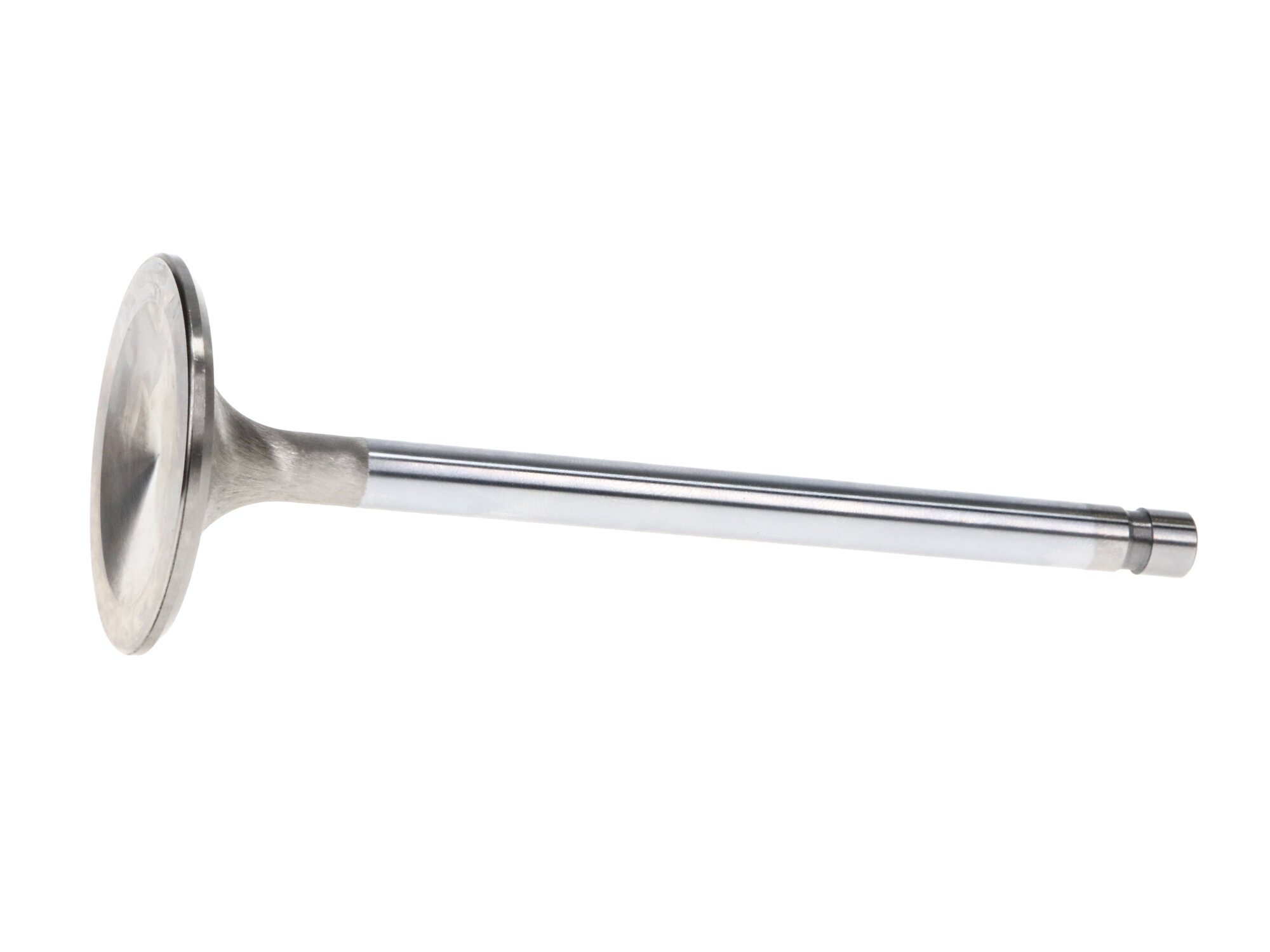

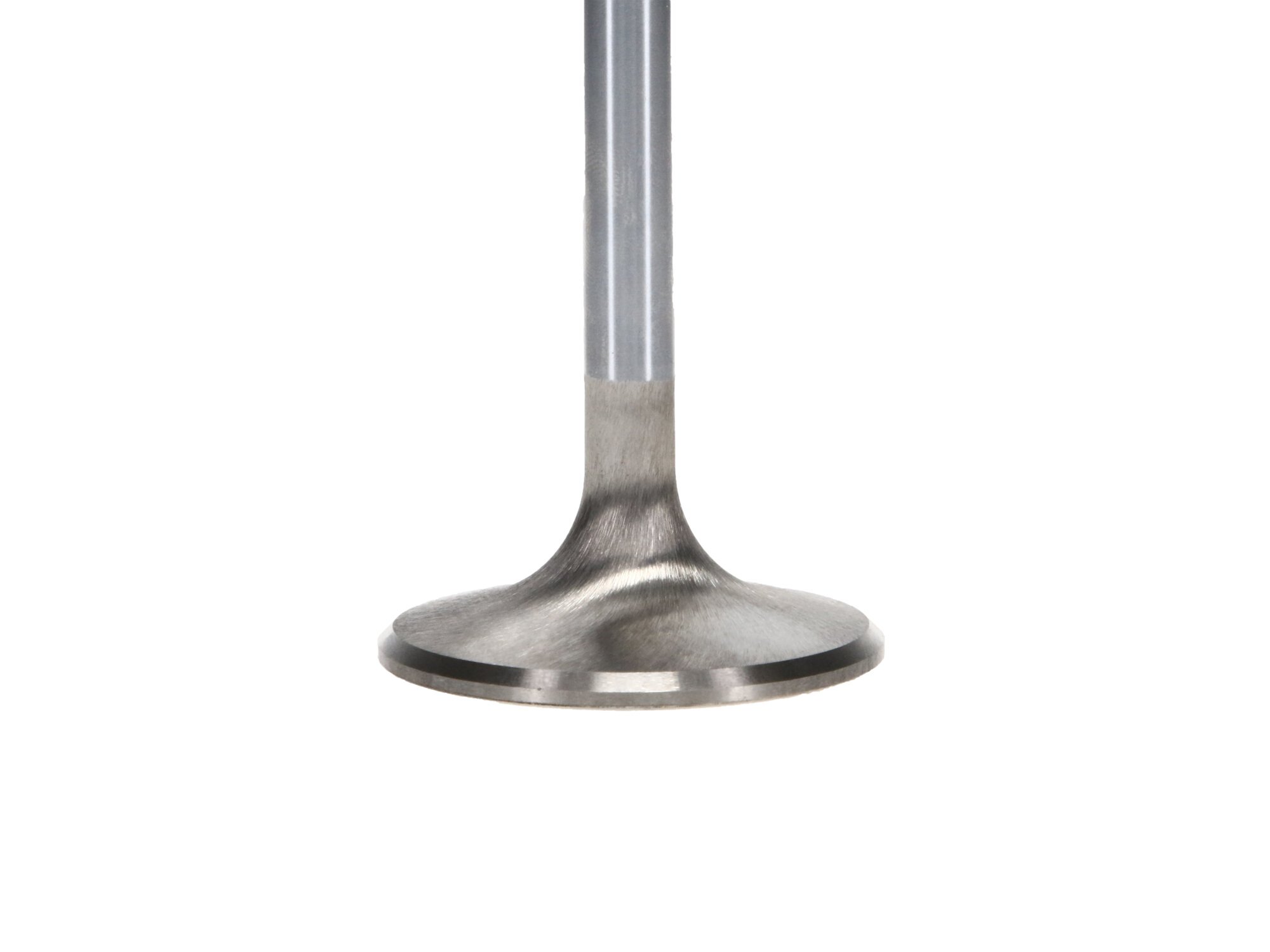

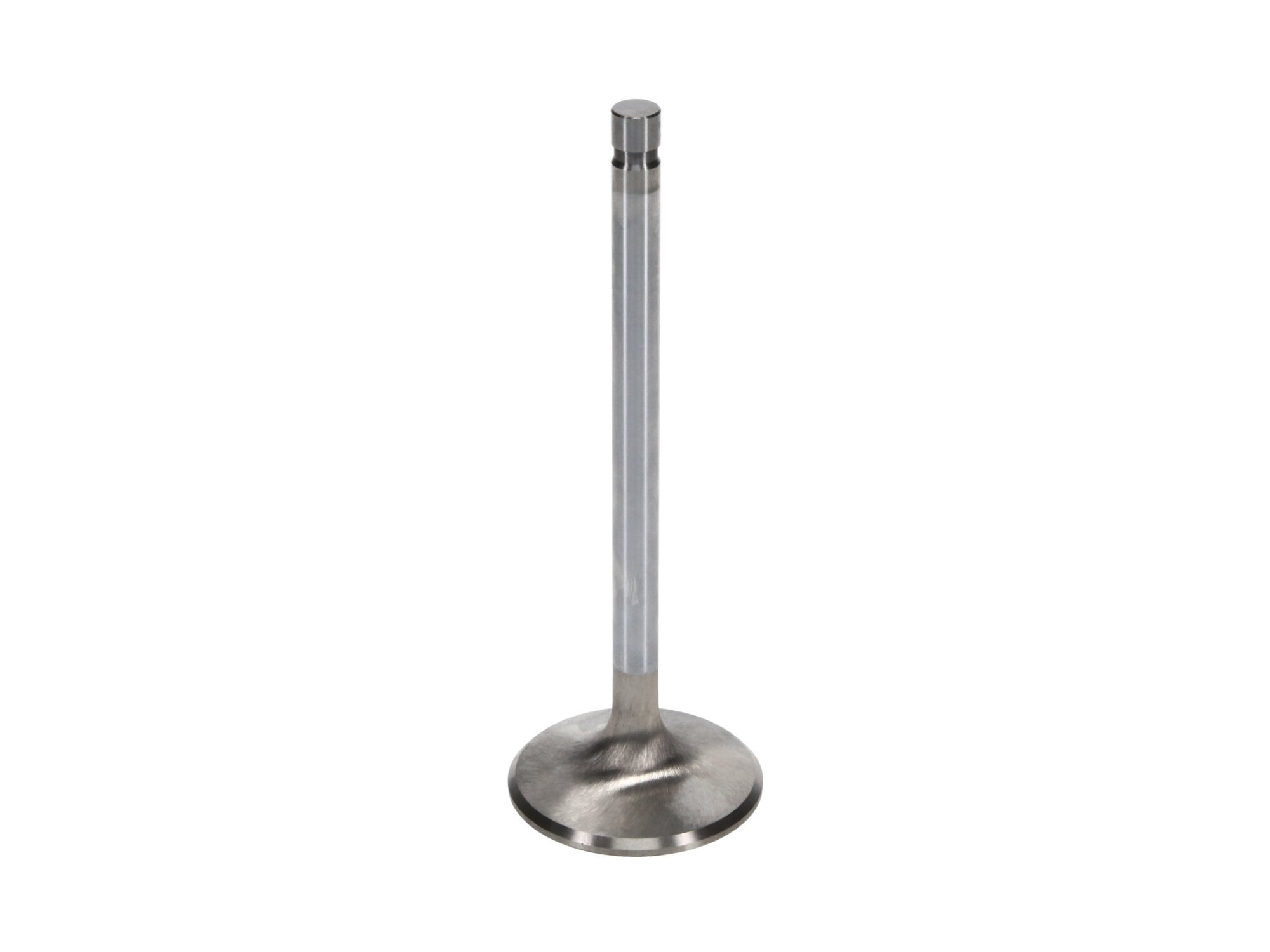

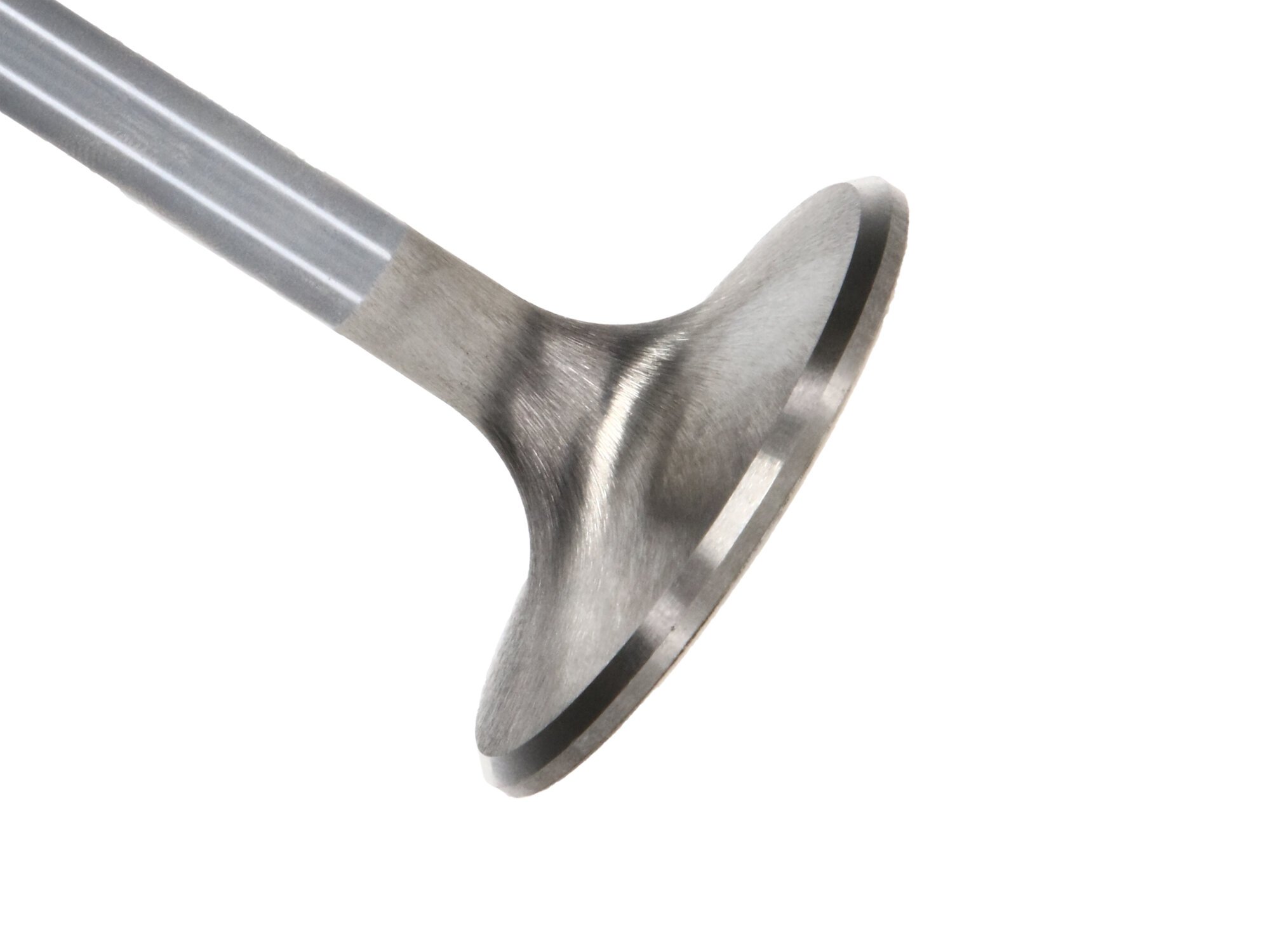

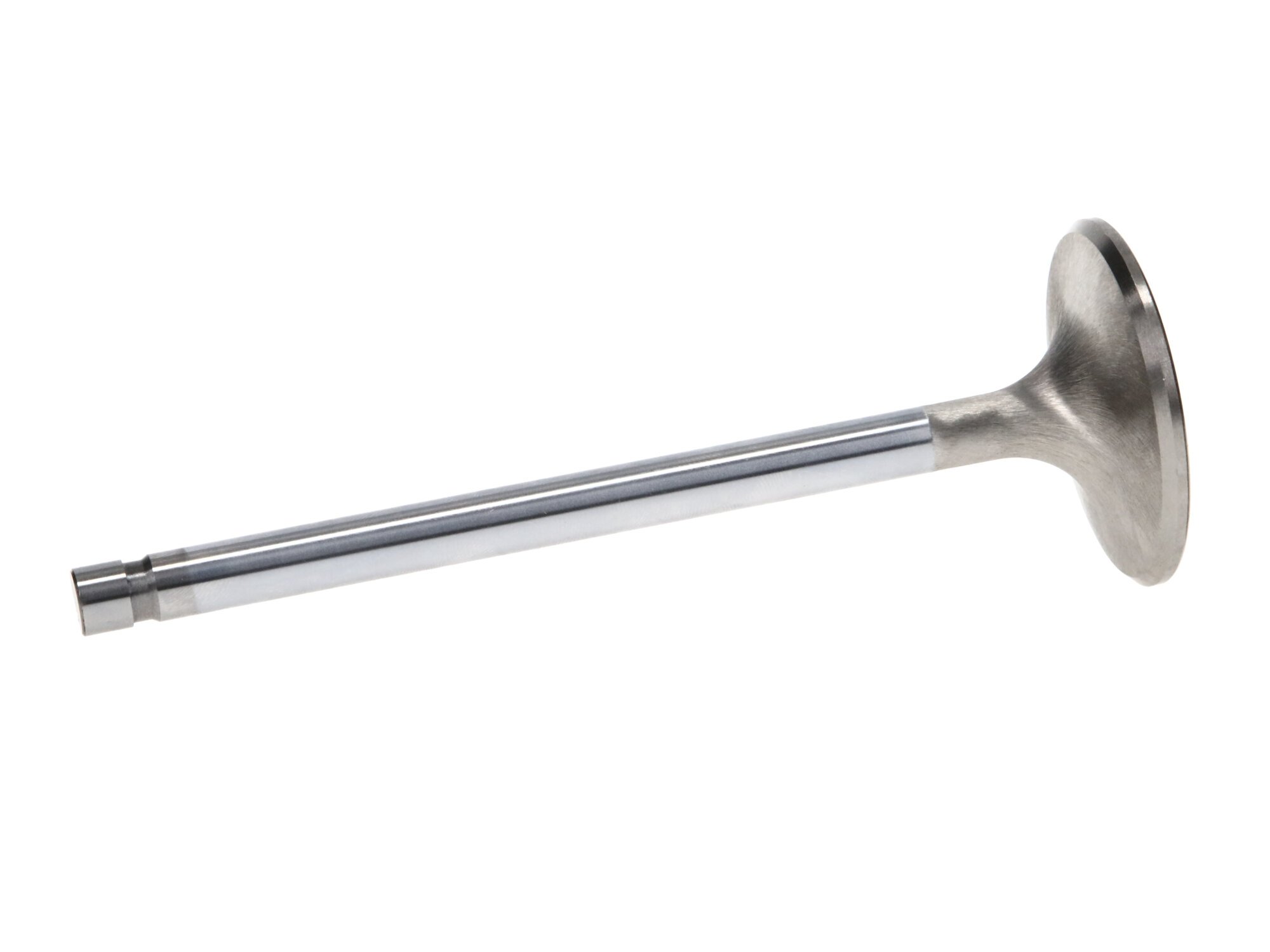

Manley Race Series Ford 429 Boss Exhaust Valve Kit – 1.900 in. Head Dia., 5.650 in. O/A Length, 0.3715 in. Stem

$183.28

SKU: 11787-8

Available on backorder


Add to Project List

Manley Valve – Exhaust, Valve-BBF R/M 1.900.

Manley’s Race Series valves are meticulously engineered to meet the rigorous demands of bracket, drag, and oval track racers and are the ultimate choice for engines operating under 8000 RPM

  • Stainless Steel Construction: Both exhaust (XH-426) and intake (NK-842) valves are constructed from high-quality stainless steel for unparalleled durability.
  • Chrome Stems and Hard Tips: Chrome stems and hard tips are incorporated for enhanced longevity and wear resistance.
  • Swirl Polished and Fully Machined: The valves feature swirl polished under head areas and fully machined combustion faces to optimize airflow and combustion efficiency.
  • Variety of Shapes: Choose between Race Master (Straight Stem) and Race Flo shapes to suit your racing engine’s specific requirements.
  • Recommended for Alcohol Engines: These valves are the recommended choice for exhaust valves in alcohol engines, ensuring reliable performance even in demanding conditions.
SKU: 11787-8 Categories: , ,

GTIN: 00807298050409

Weight 4.000 lbs
Dimensions 11.750 × 6.750 × 2.500 in
Product Market

Domestic

Head Diameter

1.900 IN

Stem Diameter

0.3715 IN

O/A Length

5.650 IN

Tip Length

0.350 IN

Margin Width

0.080 IN

Seat Width

0.100 IN

Top of Head

9 Degree Dish

Underhead Angle

15.00 DEG

Underhead Radius

1/2 IN

Valve Series

Race Series

Valve Sub-Series

Race Master

Product Type

Engine Exhaust Valve Kit

Valve Quantity

8

Engine Detail – Web

429 Boss

Makes

Ford

Engines

Big Block
